PVC Gypsum Ceiling Tiles Manufacture & Supplier in China
SPECIFICATION & TECHNICAL DATA
| Product Name | PVC Gypsum Ceiling Tiles |
| Surface Coating | PVC lamination on front surface, aluminium foil backing. |
| Main Material | High grade natural gypsum powder |
| Edge | Covered/Non-covered |
| Specification | Size (mm): 595x595mm/603x603mm/595x1195mm/603x1213mm/605x1215mm Thickness: 7-12mm; width: 595-615mm; length: 595-1220mm. Metric & Imperial sizes available. |

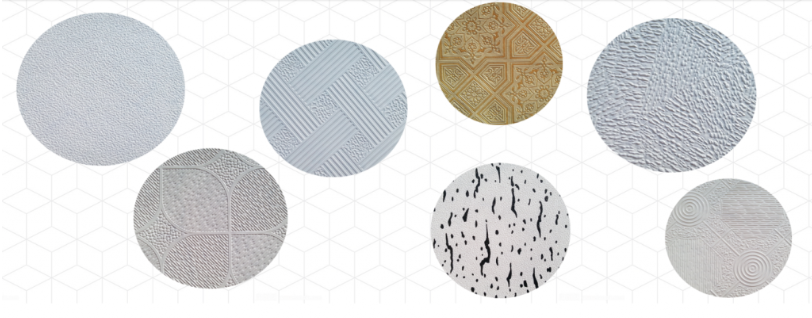

| Design | More than 100 designs; Regular patterns:#154 #238 #239 #567 #572 #975 #996 #238-5 |
| Applications | Eco-friendly, lightweight, high-performance decorative ceiling panel. Features fire resistance, water resistance & corrosion resistance.Widely used in malls, shops, offices, schools, stations, hospitals, restaurants, residential homes, etc. |
| Package | 10 pieces/box ; 8 pieces/box ; OEM & ODM orders acceptable. |
| Certifications: | CE.ISO.SGS.PVOC.COC.... |
| ITEM | STANDARD | TEST VALUE |
| Appearance | The front of the product should not affect the decorative effect of stains,uneven color,incomplete pattern defects.The product shall not have cracks,warping,distortion,and shall not have any missing edges or corners that hinder the use and decorative effect. | On the front of the product,there are no stains,uneven colors and incomplete picture elements that affect the decorative effect.The product has no cracks,warping,distortion, and no missing edges and corners that hinder the use and decorative effect. |
| Dimension Difference (mm) | Length: -2mm≤x≤2mm | 0 |
| Width: -2mm≤x≤2mm | 0 | |
| Thickness: -0.5mm≤x≤0.5mm | 0.1—0.2 | |
| Diagonal Tolerances: ≤4.0mm | 0 | |
| Weight/s.q.m | ≤6.5kg/m² | 5.0kg/m² |
| Moisture content | ≤1.0% | 0.2% |
| Breaking load | ≥110 N | 242N |
| Adhesion between paper and core | The veneer paper is well bonded to the core material and is not exposed | Good adhesion, not exposed |
| Moisture deflection | ≤3.0 mm | 2.1mm |
| Fireproof Class | Class A | Class A Meet The Standard:GB8624-1997 |
INSTALLATION
Easy installing, NO need more professional skills, Just fix the ceiling t-grid, accessories and boards as following:
We can also produce main tee, cross tee, wall angle, clip and hooks, explosive bolt, feel free to contact us if you need more details!
PRODUCTION LINE

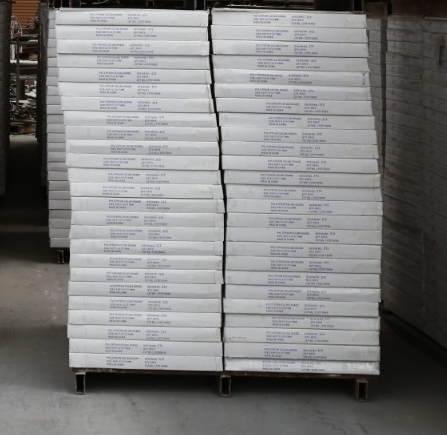

PACKING & LOADING PHOTOS

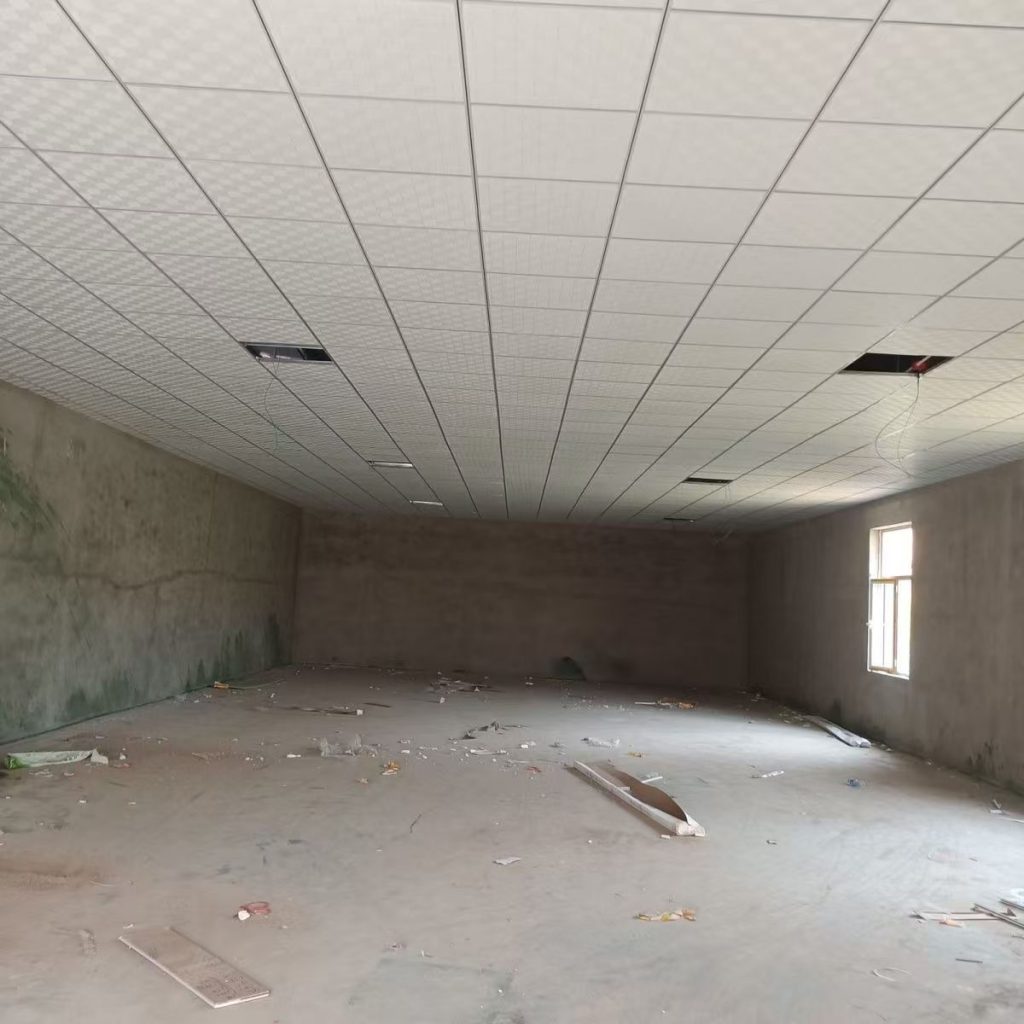

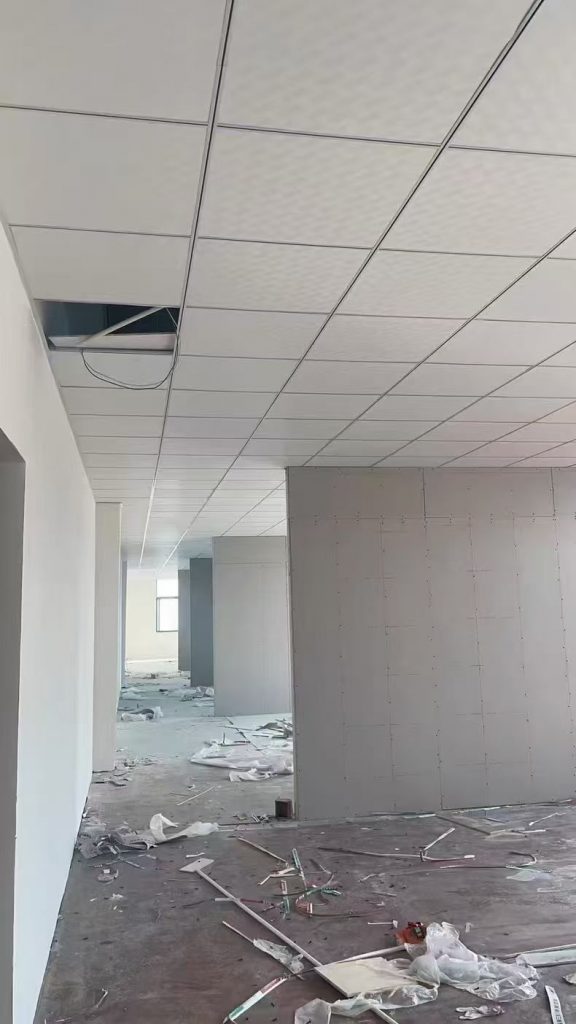

COOPERATIVE CONSTRUCTION PROJECT
