Gypsum Board Manufacturer & Supplier in China
Paper-faced gypsum board is made of 95% pure natural gypsum powder as the main raw material, mixed with fiber as the core, and made of special paper as the protective surface. Paper-faced gypsum board has the characteristics of light weight, sound insulation, heat insulation, strong processing performance and convenient construction method.
Standard Gypsum Board
Waterproof Gypsum Board
Fireproof Gypsum Board
Moistureproof Gypsum Board
PRODUCTION LINE
SPECIFICATION & TECHNICAL DATA
| Product Name | Gypsum Board |
| Surface Coating | Fiber paper |
| Main Material | 95% pure natural gypsum powder |
| Edge | Square / Tapered Edge |
| Specification | Regular Size (mm): 1200×2400×9mm / 1220×2440×9mm, 1200×2400×12mm, 1200×2500mm, 1200×2700mm, 1200×3000mm. Thickness: 6.4-25mm; width: 1200-1250mm; length: 1500-4200mm. Both Metric and Imperial systems are accepted. |
| Type | Standard gypsum board / Waterproof gypsum board / Fire-resistant gypsum board / Moisture-resistant gypsum board |
| Applications | Malls, shops, offices, schools, stations, hospitals, restaurants, residential houses etc. |
| Packing | Two sheets are packed face to face and fixed with tapes. |
| Asbestos | 100% Non-Asbestos |
| Certification | AS/NZS, CE, ISO, SGS, COC, PVOC, FORM A ... |
| ITEM | STANDARD | TEST VALUE | ||
| Rupture Load(N) | Thickness 9.5mm | Vertical | ≥360 | 440 |
| Horizontal | ≥140 | 205 | ||
| Thickness 12mm | Vertical | ≥500 | 590 | |
| Horizontal | ≥180 | 212 | ||
| Dimension Difference(mm) | Length | −6—0 | −0.1—0 | |
| Width | −5—0 | 0 | ||
| Thickness 9.5mm | ±0.5 | −0.1—0 | ||
| Thickness 12mm | ±0.6 | −0.1—0 | ||
| The Stability of Meeting Fire (For Fireproof Gypsum Board) |
Not Less Than 20min | ＞20min | ||
| Cater-corner Length Difference(mm) | ≤5 | 0—1 | ||
| Inner Irradiation Ratio | IRa≤1.0 | IRa＜1.0 | ||
| Outer Radiation Ratio | Ir≤1.3 | Ir＜0.1 | ||
| Weight per unit(kg/m²)（thickness 9.5） | ≤9.5 | 7.5 | ||
| Waterproof Gypsum Board Water absorption % | ≤10 | 4.8 | ||

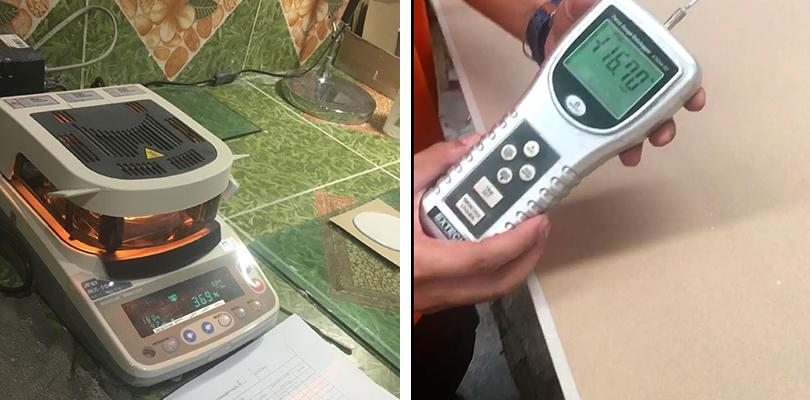

QUALITY CONTRAL
COMPRESS TEST: every hour, please attention when it break SCREW HOLDING TEST: every two hours
WATER ABSORBTION TEST: every hour HARDNESS TEST: every hour
THICKNESS TEST: every hour PAPER JOINT TEST: the less paper is gotten off,the better joint between paper and gypsum board

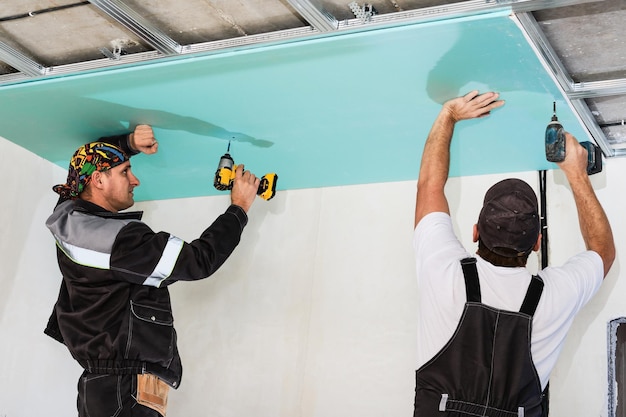

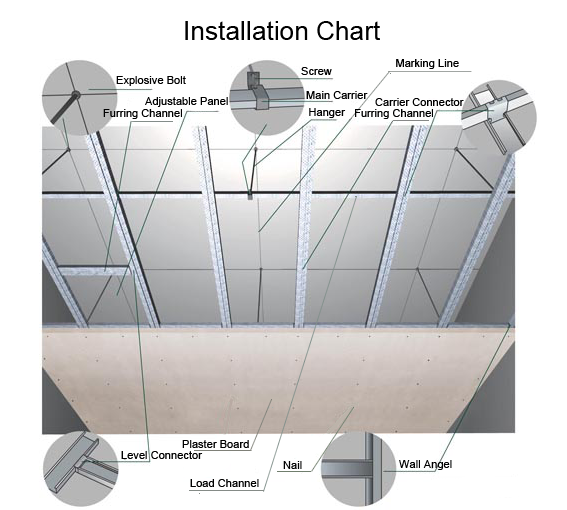

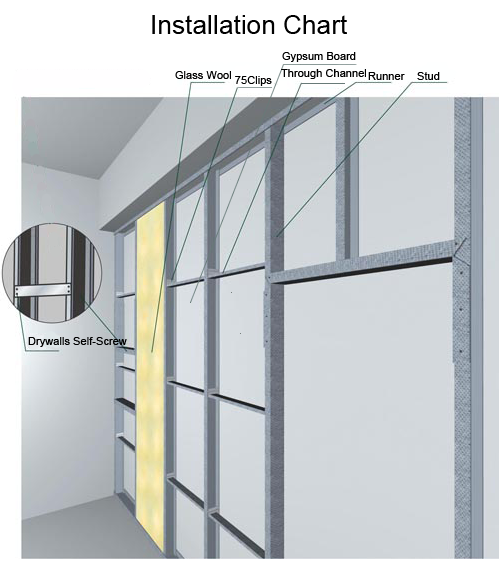

INSTALLATION

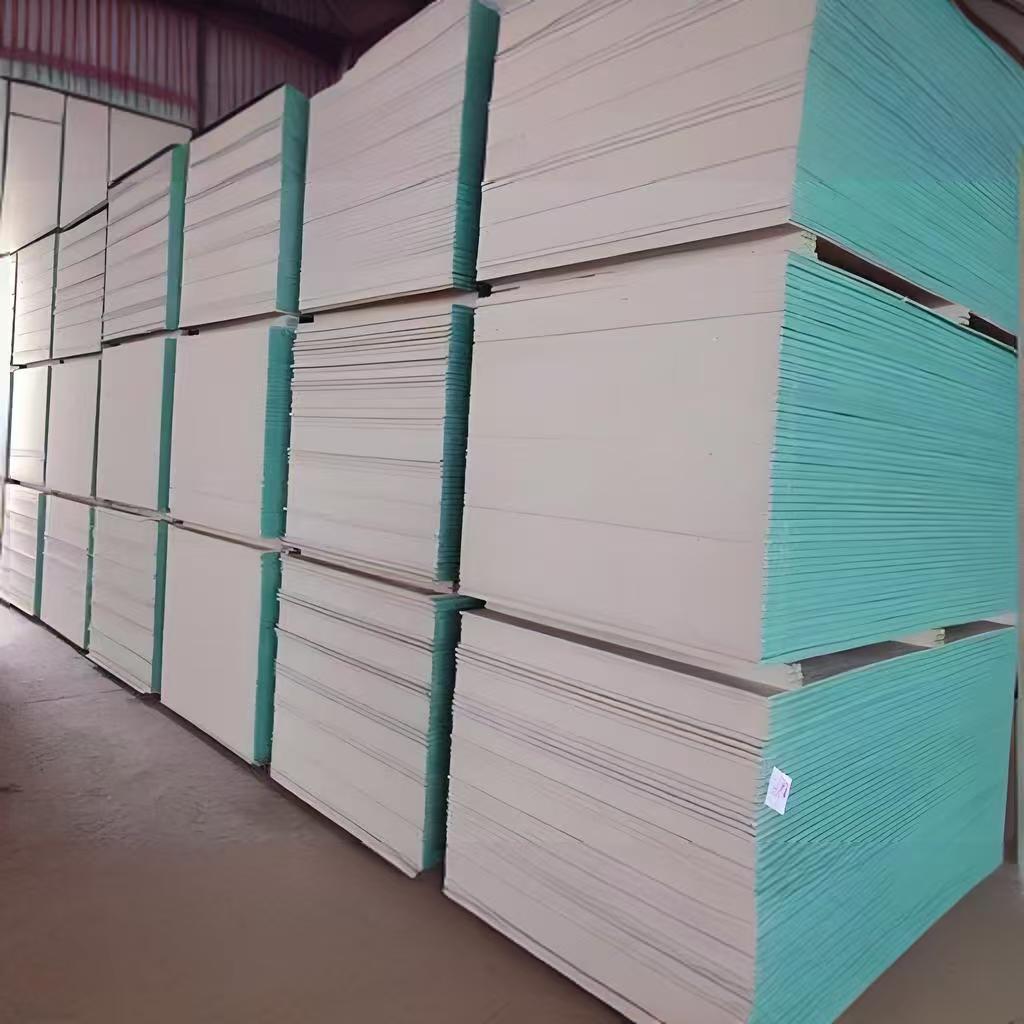

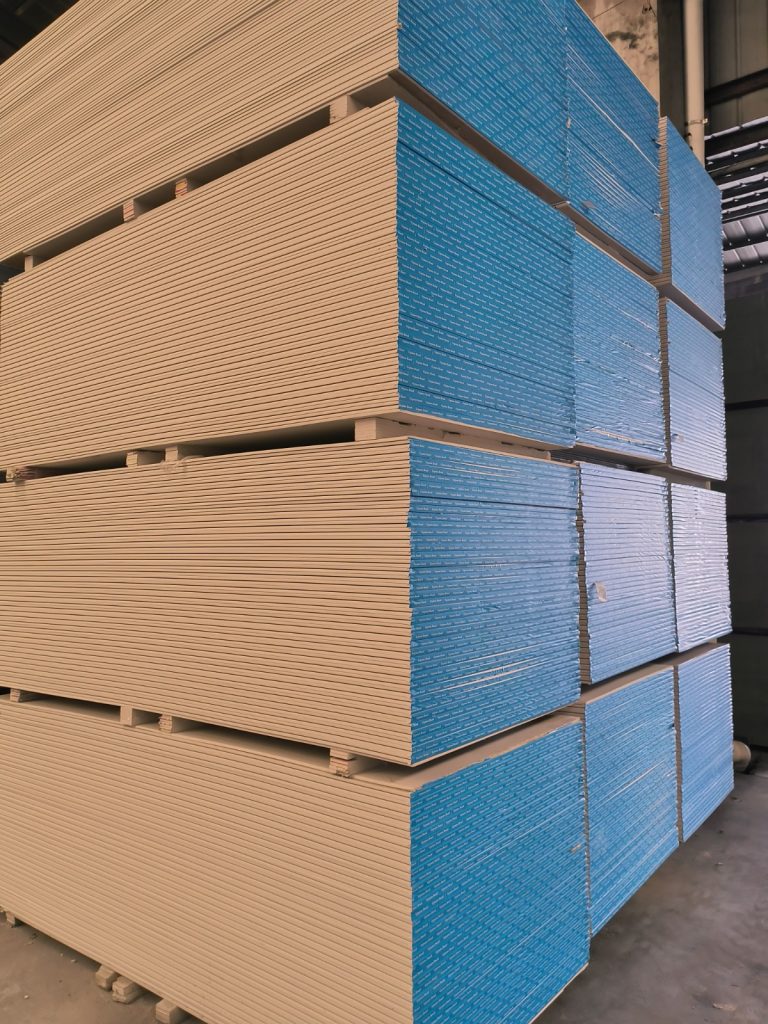

PACKING & LOADING PHOTOS

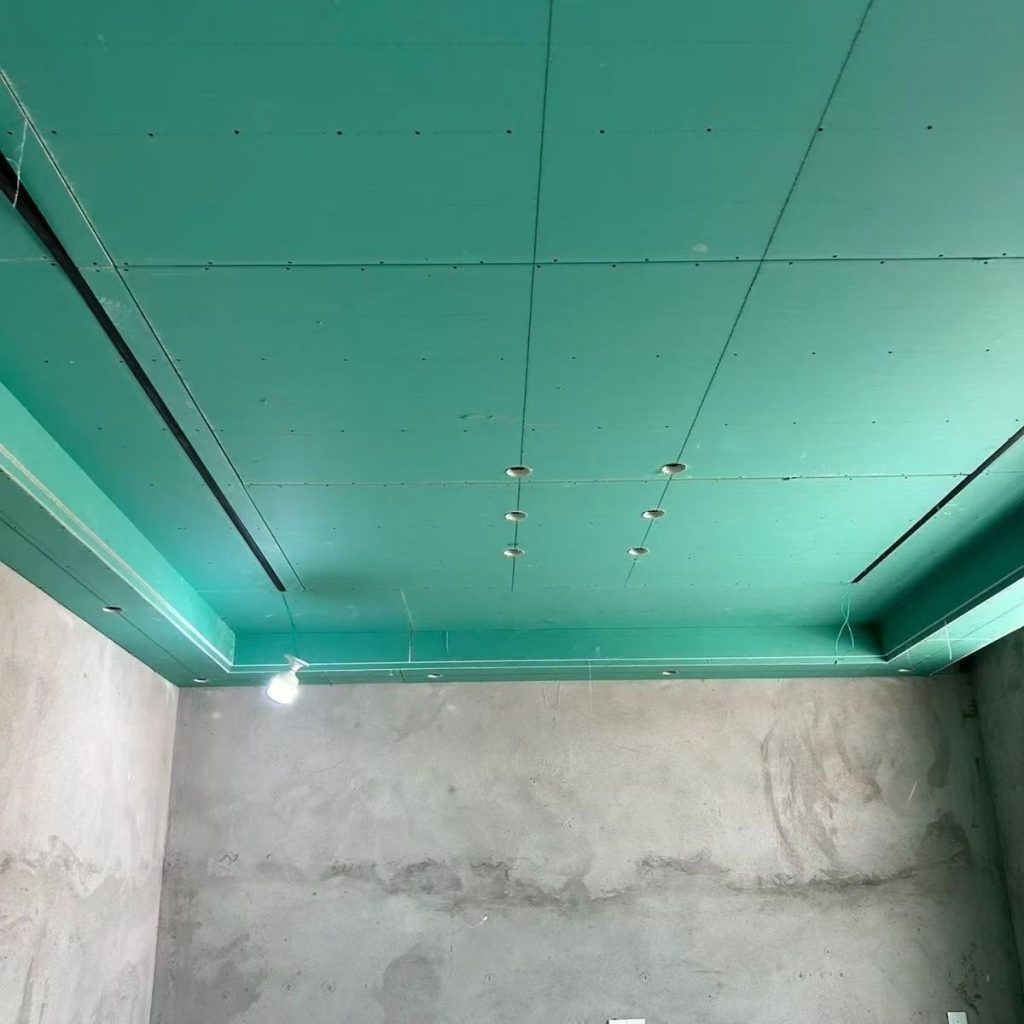

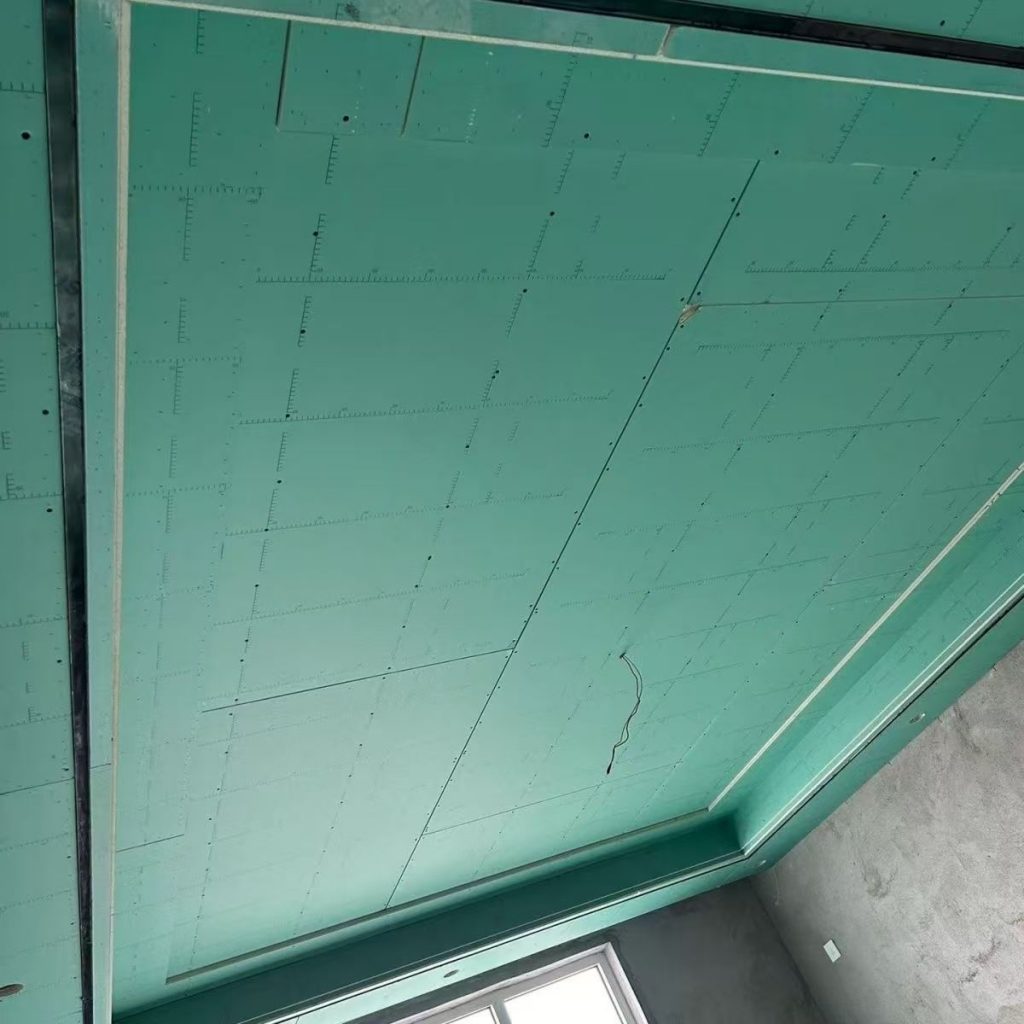

COOPERATIVE CONSTRUCTION PROJECT
